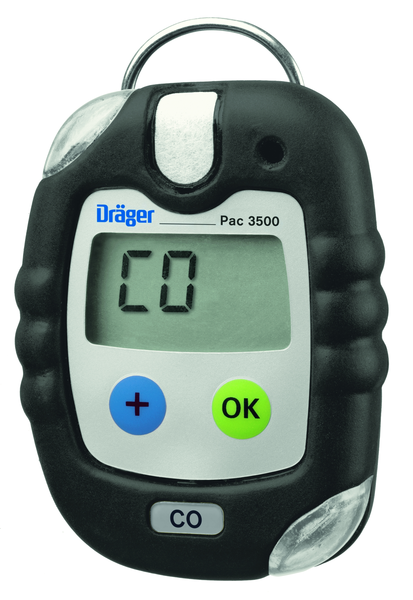

Draeger 8321010 Pac 3500 Single Gas MonitorPac 3500 Single Gas Monitor

Quantity

Overview

The Draeger Pac 3500 is a 2-year disposable monitor that offers accurate single gas monitoring for CO, H₂S, or O₂ at a low cost. The Pac 3500 does not require maintenance or calibration and includes an eventlogger.

AI Summary

Disclaimer

This AI system is experimental and currently undergoing testing. International Safety makes no guarantees regarding the accuracy or reliability of the information provided and shall not be held liable for any errors, omissions, or outcomes resulting from its use.

The Pac 3500 (Part #: 8321010) is a tough, reliable single gas monitor that stores up to 700 test results and easily connects to your PC for record-keeping. Its water-resistant, impact-proof design makes it ideal for outdoor or industrial use. If you need accurate, portable gas detection during site inspections or maintenance, this unit ensures safety without hassle.

Features

Small & Robust Housing

Draeger Pac® 3500s impact-resistant housing features a protective rubber coating and is impervious to corrosive chemicals. Draeger Pac® 3500 meets the requirements of IP 65 to ensure operation even when splashed with water. A crocodile clip securely fastens the instrument to the users clothing and can be adjusted to allow for individual preferences.

Safety First

To ensure continuous operation even when the unit is in a shirt pocket, the instruments sensor has been carefully positioned to allow gas intake from both the top and the front of the device.

Miniature Sensor Technology

The latest miniature Draeger XXS sensor technology has been incorporated into the Draeger Pac® 3500, which has been specifically developed for use in personal monitoring and handheld applications. The robust and pressure compensated sensors reliably detect CO, H2S and O2 and because of the very low sensitivity drift, the Draeger Pac® 3500 can be used over a 2 year period without calibration.

Clear Display

The large display, easily seen at a glance, shows both the gas concentration and the measurement unit. Alternatively, the instrument can be configured to show only the gas detected. The concentration is then displayed only when the set alarm level has been exceeded. Language-free for quick, at a glance status checks, the continuous numeric display can also be back-lit to improve readability in darker conditions. Colored overlays are available to distinguish the instrument gas type at a distance.

Alarms & Warnings

In addition to a vibrating alarm, the Draeger Pac® 3500 emits an audible, multi-tone signal and a clear, 360° visual alarm via bright, flashing LEDs at the top and base of the instrument. The alarm threshold levels can be individually adjusted to comply with company policy or other standards using Draeger software.

Event Logger

The Draeger Pac® is complete with an infrared interface and isable to store up to 60 events with dates and times. It can be easily linked to a PC via a connecting cradle. This means that significant events such as switching on or off, gas and battery alarms, error codes, configuration changes, fresh air calibrations and bump tests can be downloaded, printed and stored centrally for future reference or reporting purposes.

Quick & Reliable Bump Testing

Bump or function tests are used to check if the instruments are functioning correctly. Bump testing allows users to test equipment against a known gas concentration on a regular basis. The Draeger Pac® 3500, featuring adjustable bump test and calibration intervals, alerts the user when bump tests or calibration are required. If this warning is ignored or a test is unsuccessful, the instrument can automatically display an out of order error message.

Performed together with the Draeger Bump Test Station, a typical bump test takes between 8 and 15 seconds and requires no additional power so that the test can be performed on site. Each test result is automatically stored in the event logger. An optional mobile printer/interface provides printed results and stores 700 tests for download.

If necessary, a fresh air calibration can be carried out during the start-up sequence. All other calibration options are only accessible via a password-protected menu.
