Draeger 8327718 Alcotest® 5000 Alcohol Breath Device for Mass ScreeningAlcotest® 5000 Alcohol Breath Device for Mass Screening

Quantity

Overview

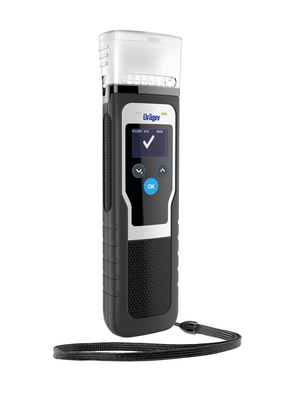

The Draeger Alcotest® 5000 is a professional breath-alcohol tester which detects the presence of alcohol. The high-speed breathalyser lets you perform numerous tests in minimal time. Its special funnel reduces the back-ﬂow of expired air to a minimum, preventing the risk of infection to subsequent test subjects.

AI Summary

Disclaimer

This AI system is experimental and currently undergoing testing. International Safety makes no guarantees regarding the accuracy or reliability of the information provided and shall not be held liable for any errors, omissions, or outcomes resulting from its use.

Part #8327718, the Alcotest® 5000 funnels, makes breath testing quick and hygienic by providing individually packaged mouthpieces. If you often need to screen multiple people—like at events or workplace safety checks—these ensure fast, clean testing without cross-contamination. They’re perfect for keeping things efficient and professional when using the Alcotest® 5000 device.

Features

Maximum control in minimum time with our fastest ever breathalyser

With the Alcotest® 5000, you can test up to 12 people a minute to determine whether they have consumed alcohol or not. Especially for police and private security professionals, testing large numbers of people for intoxication in a short period of time presents a major challenge: for example, during large-scale operations, entrance checks at work sites, and stadiums, entry points to public transport and airport security checks. In the case of a positive test result, exact blood-alcohol levels can be calculated if necessary using Draeger alcohol screeners or court-approved evidential devices.

High-precision rapid alcohol testing with hygienic funnel design

The alcohol test takes place without the need for bodily contact with the test subject. There is no need to attach and detach mouthpieces, because testing requires the subjects simply to blow into a funnel. With its unique design, this special Draeger Alcotest 5000 funnel prevents the back-ﬂow of the subject's own expired air and the inhalation of any pathogens from previous test subjects. After use, the funnel attachment is easily exchanged, providing assurance of a hygienic solution.

Alcohol testing with simple operation and convenient oversight

With its easy-to-use, single-button operation via the OK button, the Alcotest 5000 is the latest generation of Draeger's proven, simple-to-operate alcohol testing devices. Using its two additional arrow buttons, you can navigate easily and for example: view the latest test results, reset the test counter, check for the next scheduled calibration date, or set the menu to a diﬀerent language. The instructions for the test process are language-neutral and easy to understand, thanks to symbols on the display.

Breath-alcohol testing at a distance

Where the tester and the test subject are not adjacent (for example, a driver seated in the cab of a truck), the Alcotest 5000 features a ¼" thread on the back of the device where a standard selﬁe stick can be attached. This speeds up the breath-alcohol testing process.

With just one set of fully charged batteries, the Alcotest 5000 can perform over 5,000 tests, whether actively (the test subject actively blows into the funnel attachment) and / or passively (for example, measuring alcohol in ambient air or suspicion of alcohol in beverages).

Innovation born out of tradition

With over 65 years of experience, Draeger is the global market leader in the ﬁeld of breath-alcohol testing. Police in many countries use devices from the Alcotest product series in everyday traﬃc monitoring. The Alcotest 5000 is made in Germany and meets the highest standards of quality. It uses the same, professional EC sensor technology as our Alcotest 6820 screening device, ensuring precise test performance and secure results.

Technical Information

Measuring range

0 to 0.029 mg/L → “Tick mark” symbol on the display screen means “No Alcohol Detected”, visually supported by a green LED.

From 0.030 mg/L → “X” symbol on the display screen means 'Alcohol Detected', visually supported by a red LED.

From 2.5 mg/L → Measuring range exceeded (↑↑↑)

Standard sampling

Sampling starts automatically when the minimum volume orpredeﬁned blowing time is reached.

Passive sampling can be done with or without a funnel.

Sampling can be triggered manually while the test subject blows into the funnel.

Start-up time Ready to use approx. 4 sec. after switching on

Display of test results

After approx. 2 sec. (at 0 to 0.029 mg/L);

After approx. 6 sec. (at e.g. 0.5 mg/L, at room temperature).

Measurement basis Electrochemical DraegerSensor®, alcohol-speciﬁc

Display

Graphic LCD display with backlight 32 x 22 mm (128 x 64 pixel) LEDs

Two-colours, for supporting test results and warning messages on the display

Acoustic signals Various signal tones for supporting display and warning messages

Memory Stores the latest 500 test results with test number, date and time

Energy supply 3x AA batteries, charge status shown on display; with the battery life from 3x AA batteries, more than 5,000 tests can be performed.

Funnel intake Click adapter for funnel

Funnel Hygienic, individually packaged with air outlets for minimizing back-ﬂow of expired air

Operating design Test functions are started with the “OK” button; two arrow buttons are used to navigate through the menu.

Calibration Wet- or dry-gas calibration with the Alcotest 5000 calibration adapter

Exterior Impact-proof ABS/PC

Dimensions (W x H x D), Weight Approx. 63 x 219 x 41 mm; approx. 245 g incl. funnel and batteries

Vibration and impact resistance EN 60068-2-27, EN 60068-2-6; EN 60068-2-64

CE marking EMC Directive

Standards Contactless breath-alcohol testing devices are currently not subject to any standards

Internal clock Warning 30 days before service interval expires

Service interval 24 months

Operating temperature -15 °C to +50 °C

Air humidity 10 to 100 % relative humidity (not condensed and in operation)

Ambient pressure 600 to 1,300 hPa
