3M™ 7400052 SecuraSpan™ I-Beam HLL Stanchion BaseSecuraSpan™ I-Beam HLL Stanchion Base

Quantity

Overview

Extremely lightweight and portable, these systems incorporate a modular, multi-base design that accommodates a wide range of steel and concrete beams. Spans can be up to 60 ft. (18.3 m) and with the optional bypass brackets, the system can be configured to run indefinitely for ultimate jobsite flexibility. You can always depend on our horizontal safety systems for mobility and fall protection when working at height. That’s why safety engineers and site directors choose DBI-SALA® horizontal lifelines. We offer the broadest selection, as well as significant advantages in safety and productivity. A horizontal lifeline may appear to be a basic line strung between two anchors, but it is not. It is critical to choose a system that has been precision engineered and rigorously tested to meet regulations. These systems are used to protect workers operating in the horizontal plane who may not have continuous access to suitable anchorage points.

Features

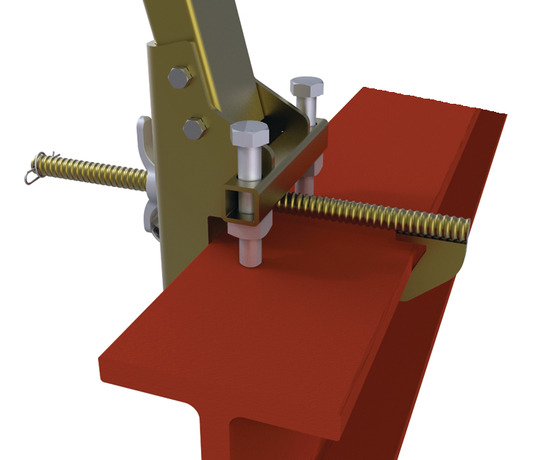

I-beam base for stanchion to configure your own SecuraSpan™ system

Customize your SecuraSpan™ I-beam system to suit your specific jobsite needs to provide the ultimate in horizontal mobility and fall protection.

Converts your SecuraSpan™ rebar/shear stud system to an I-beam system

Allows you to reconfigure your stanchions from concrete applications to steel I-beam applications for flexibility and economy.

Fits 6 in. to 12 in. (15.2-30.5 cm) wide flange up to 2-1/4" (5.7 cm) thick

Integrated system has a wide range of adjustment for greater jobsite flexibility and versatility. Options available to fit 18, 24 and 36 in. (45.7, 60.9 and 91.4 cm) wide flanges.

Lightweight and portable design

Provides fast and easy handling, installation and storage for maximum worker productivity.

Top mounted adjustment system

All adjustments are made from the top of the beam for added ease of installation and complete user safety.

Simple clamp and wing nut installation

A single clamp with large wing nut makes clamping to beam fast, easy and safe.

Extremely durable construction

Extremely rugged zinc plated steel construction provides corrosion resistance for longer service life.

Single and multi-span indefinite length system configurations

Provides complete customization of your system depending upon the clearance below the work area and overall length needed.

Pass-thru 100% tie-off protection

The multi-span intermediate provides bypass capabilities for continuous connection, there is no need to disconnect and reconnect offering complete horizontal mobility and 100% protection.

Flexible system capacity

System capacity of 2 workers per span, with a maximum of 6 workers on multi-span systems provides added jobsite flexibility.

Various lengths and individual components are available

Modular design and individual components allow you to completely customize your system any way you want it for ultimate jobsite versatility.

Equipped with i-Safe™

Integrated RFID identification tag for recording and storing information on inspections and tracking safety equipment.

Technical Information

This item's country of origin is United States.

Capacity: 310 lbs. (141 kg)
Brand: DBI-SALA®
Sub Brand: SecuraSpan™
Size: Order Separately
Install Type: Temporary/Portable
Lifeline Type: Order Separately
Max Number Of Users: 2 Per Span, 6 Total
Span Type: Single or Multi-Span
iSafe Equipped: Yes
Lifeline Length: Order Separately
Label: Vinyl
Model:** 7400052
Other Standards: Capital Safety Gen. Mfg. Req.
Physical Weight: 21.70 lbs (9.8kg)
Product Styles: Component/Accessory
Product Types: Steel I-Beam
Standards: Capital Safety Gen. Mfg. Req.
