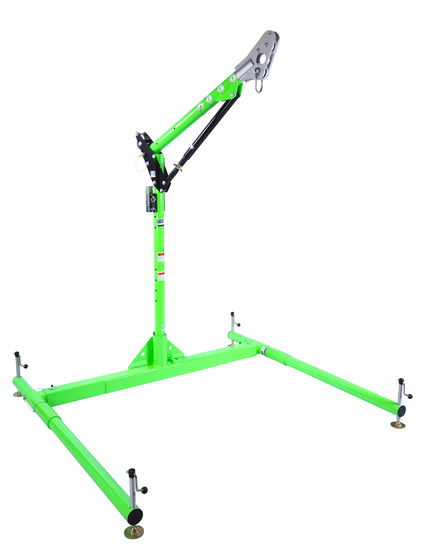

3M™ 8518040 Advanced™ 5-Piece Davit Hoist System - w/ 23-1/2' to 42-1/2' Adjustable Offset Davit MastAdvanced™ 5-Piece Davit Hoist System - w/ 23-1/2' to 42-1/2' Adjustable Offset Davit Mast

Quantity

Overview

The Advanced™ series hoist systems are designed for manhole and confined space entry/retrieval applications. These units are constructed of lightweight materials including high-strength aluminum. The davit pivots for ease-of-rescue and has adjustment for overhead clearance restrictions. The lower base adjusts to fit most standard entries. Many other portable and fixed bases are available to suit any jobsite need. If additional height is required, check out our lower mast extensions. When it comes to confined space entry/rescue, it is essential that equipment operates perfectly and quickly. DBI-SALA® has an extensive line of rescue and retrieval systems with decades of proven field service. Safety engineers and site directors trust DBI-SALA® for the type of high quality, rugged systems that will ensure top performance when it is needed the most.

Features

View this item in your space! Download the Augmented Reality 3M fall Protection App for iOS or Android.

5-piece davit hoist system

Includes everything needed (except winch/SRL) to build your confined space rescue and work support system.

Integrated 5,000 lb. (22 kN) mast anchorage point

Provides user with a secondary ANSI rated fall arrest anchorage point for maximum worker safety.

Fall arrest rated in most davit offset mast positions

Engineered system incorporates a fall arrest rated anchorage point with a strength rating of 1,800 lb. (8 kN).

Adjustable offset upper davit mast (model 8518006)

An ideal confined space support structure for one or more mechanical devices and your choice of Advanced™ portable or permanent bases.

Telescoping reach of 23-1/2 in. to 42-1/2 in. (59.7 to 108 cm)

Adjustable length of davit ensures mechanical device lifeline(s) are always centered over the confined space.

Adjustable vertical height of 33 in. to 43 in. (83.8 to 109.2 cm)

Eliminates the need for custom length masts and extensions allowing one system to cover a range of different confined space scenarios.

Built-in primary and secondary pulleys

Route lifelines of two mechanical devices for smooth, efficient rescue and work support operations.

Quick mount winch/SRL bracket

Simple detent style bracket offers extremely fast and safe mechanical device installation.

Combine up to 2 extensions

Attach 2 extensions together in any combination up to 78 in. (198.1 cm) to customize your davit system to fit your changing work area for ultimate flexibility.

33 in. (83.8 cm) lower davit mast extension (model 8518002)

Provides the flexibility to change the overall mast height of your system.

Detent and knob style adjustment

Allows user to adjust system quickly and easily to site configuration without tools and collapse for transport and storage.

Extends your davit mast height

Increase the overall anchorage height of your davit mast - models available for 21 in. (53.3 cm) up to 57 in. (144.8 cm) for added versatility.

3-piece adjustable portable base (model 8518008)

Lightweight multi-piece base sets up and breaks down quickly making it deal when you need to move and access various confined space areas.

Lightweight, corrosion resistant aluminum construction

Our davit systems are a fraction of the weight when compared to steel and offer quick and easy transport, set-up, dismantle and storage.

Unique foot level and height adjustment system

Allows user to adjust each side of the system independently from 5 in. to 11 in. (12.7 to 28 cm) to easily level over the confined space.

Base width adjusts from 70 in. to 97 in. (177.8 to 246.4 cm)

This system accommodates a wider range of confined space entry needs when compared to tripods because of its unique adjustable base.

Technical Information

This item's country of origin is United States.

Capacity: 450 lbs. (204 kg)
Brand: DBI-SALA®
Sub Brand: Advanced™
Install Type: Portable
iSafe Equipped: No
Label: Polyester
Primary Material: Aluminum
Model: 8518040
Other Standards: OSHA 1926.502, ANSI Z359.1
Physical Weight: 164.70 lbs (74.7kg)
Product Styles: Complete System
Product Types: Davit System
Standards: Capital Safety Gen. Mfg. Req.
